Many people start building an AyrMesh network on their property to provide Internet access across their acreage. However, having an Internet Protocol (IP) network across your property gives you the opportunity to connect devices on the property to help you be more productive, more efficient, safer, and happier.
When I ask people what else they’d like to do with their AyrMesh Network, the first thing that usually comes up is cameras – the ability to see their property remotely.
There are two distinct reasons for putting cameras on your property: the first is what I call “situational awareness” – being able to bring up a view of some part of your farm any time you want. The second is for security – automatically monitoring some view of your property and alerting you when something happens.
If you have animals on the farm, you probably worry about them – especially if your livelihood is tied up in them. One of the most common uses for cameras on the farm is to be able to check on the animals, whether it’s just so the kids can see the horses when you’re away or if you need to check on farrowing sows, calving cows, or foaling mares to protect your investment.
A lot of people also just want to be able to view some part of the property, like the driveway or the kid’s play area, so they can know what’s going on any time. Sometimes these cameras may be dual-purpose, serving both a security function and for situational awareness.

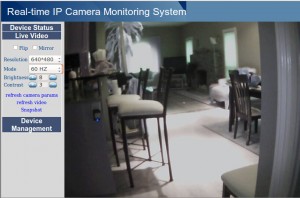

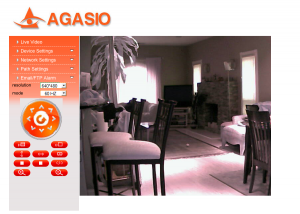

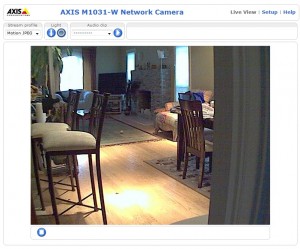

Putting a camera on your property gives you a “view” – you get the IP address of the camera from your router and you can bring up that view from anywhere on your property. Then you can do what’s called a “port forward” on your router to make your camera viewable from the Internet, wherever you may be. For instance, I always forward port 9001 to a camera in my living room. I can look at my public IP address on AyrMesh.com and find that it’s 99.100.101.102 (it’s not, but let’s pretend…), so I just need to point a browser to http://99.100.101.102:9001 and log into my camera (note: you HAVE to have a good, strong password on your camera).

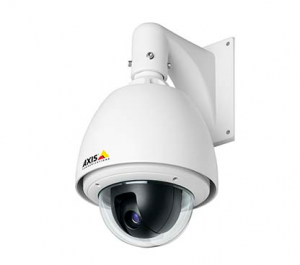

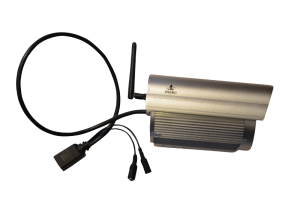

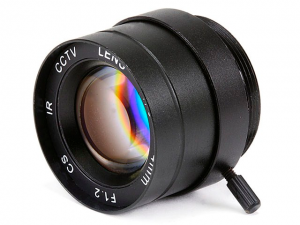

Next we’ll talk a little about the different kinds of IP cameras and the tradeoffs and compromises you can make – see part 2 here.
(NOTE: all the pictures in this post can be clicked to see at full-size).
One of the questions we get from time to time is, “What’s the best way to mount the Cab Hub in the cab?”
It’s important to be able to mount the Hub high, because the cable to the magmount antenna is relatively short, and it’s important to be able to mount it securely so it’s not banging around inside the cab. The Hub is not designed for vibration and shock, so it is also useful to isolate the Hub from the cab somewhat.
Our friends at RAM Mounting Systems, Inc. offered to help. I’m a big fan of RAM mounts, and I eagerly accepted their offer to help out. I have a RAM mount in my truck with their “X-Grip” mount for my smartphone and a suction cup. I tried mounting the Hub in it, and it did work, but it did not hold the Hub as firmly as I’d like.
The folks at RAM asked one question: “Is it affected by strong magnetic fields?” When I told them it was not, they said, “then let’s try a magnetic mount.” I told him I had a suction cup base in the truck but I didn’t want to use that in a tractor, so he sent me a “Tough-Claw” to attach to the rack in a tractor. But he also sent me a beefier suction cup for use in the truck and elsewhere.
They sent me a package consisting of the following items:
I was able to test this setup on a number of different vehicles. I went to Coastal Tractor in Salinas and they gave me the use of a New Holland T-9 4WD tractor. It was extremely easy to mount the Hub on the tractor’s rack, as shown on the left. The pieces were very simple to assemble and attach to the tubing on the tractor. Here’s a closeup of the mount:
As you can see, it’s attached with nice, large wingnuts. It was not loose and did not slip, but the rubber in the Tough-Grip and the articulation balls on the mount mean that little vibration would be transmitted to the Hub.
I put the Cab Hub Antenna on top of the tractor and plugged it into the utility power plug in the cab, and the installation was complete – it took about 10 minutes (because I had to get out and climb the other side of the tractor to install the antenna).
While I was there, I also tried mounting it successfully on an open-cab tractor they had, and put the antenna on the ROPS cage.
I had not brought along any zip-ties so I could secure the antenna cable to the ROPS, but the power cord plugged easily into the utility plug under the dashboard.
One of the most intriguing uses I have seen for the AyrMesh Cab Hub is actually for use on an All-Terrain Vehicle (ATV), so I went over to GPSports to take a look at what would be involved. They had one in the service bay they said I could mess with, so I mounted the Hub on it.The Tough-Grip was again easy to use on the tubing – the only problem was that there was no place to put the antenna where it would be high, because this ATV had no roll bar. In the parking lot, however, they had some “side-by-side” models, so I made sure the magnetic antenna worked on the roll cage.
My final test was back in the truck – I traded the Tough-Grip for the suction cup and attached the mount to the back window of my “extended cab” pickup. It has been on there for several days now, and has not yet moved.
The bottom line on all this is that a small investment in RAM mounts can make mounting your AyrMesh Cab Hub VERY easy in any Vehicle.

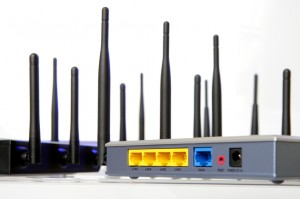

It seems like every time you look around there’s a new crop of WiFi routers offering unbelievable speeds and ranges due to the use of a new WiFi standard. Years ago, WiFi started out with 802.11a (back in the last millenium) and then 802.11b, which gave way to 802.11g, which was replaced by 802.11n, and new routers use 802.11ac. And, if you’re wondering, yes, of course there’s a new one on the way, currently called “802.11ax.”
There are also many ancillary standards associated with these, even an 802.11z standard (having to do with extensions to Direct Link Setup, whatever that means). The “a,” “b,” and, to some degree, “g” standards are, for all intents and purposes, obsolete, because nobody has built equipment using those standards for a long time. On the other hand, all the standards are “backwards-compatible,” so the newest equipment can still interoperate with the oldest “a” and “b” equipment.
For us here in the Ayrstone labs, the amusing thing about all these advancements since 802.11g in 2003 is that they are squarely centered on one thing: improving indoor WiFi performance. The reason that amuses us, of course, is that it’s exactly the opposite of what we’re trying to do, improve outdoor WiFi performance. There has been almost nothing done to improve outdoor long-distance WiFi since the 802.11g standard.
Here’s a quick rundown of the various WiFi standards:
802.11 – 1997 – up to 2 Mbps on 2.4 GHz and InfraRed with WEP encryption
802.11a – 1999 – up to 54 Mbps on 5 GHz
802.11b – 1999 – up to 11 Mbps on 2.4 GHz
802.11g – 2003 – up to 54 Mbps on 2.4 GHz, WPA/TKIP encryption
802.11n – 2009 – up to 600 Mbps using both 5 Ghz and 2.4 GHz, MIMO, WPA2/AES-CCMP encryption, wide channels
802.11ac – 2013 – over 1 Gbps using both 5 GHz and 2.4 GHz and extra-wide channels, MU-MIMO
802.11g was the standard that made WiFi useful (effective data rates of over 20 Mbps) and safe. The original WEP encryption standard in 802.11b was fatally flawed and easily broken – we now consider it “anti-security,” because it gives the uninitiated the illusion of security but does not actually deliver any, much like having a door made of paper painted to look like steel. WPA/TKIP encryption is still considered unbreakable (when used with strong passwords), so 802.11g WiFi devices are still perfectly useful.
802.11n added even more unbreakable security (WPA2/AES-CCMP), which is designed for large networks and organizations. It also added MIMO (Multiple Input, Multiple Output), a way of using multiple antennae to increase the bandwidth and increase the range of the WiFi signal, especially indoors. A single antenna senses “multipath” (signals bouncing off the walls and other solid objects) as noise, because they are slightly out of synchronization with signals coming directly from the other station. MIMO antennas can “correct” and re-synchronize those multipath signals, improving indoor performance dramatically in some cases. 802.11n also introduced dual-band capability, using both the 2.4 GHz and 5.8 GHz bands to increase throughput, and “wide” channels – increasing the amount of electromagnetic spectrum used from 20 MHz per channel to 40 MHz. Wide channels increase bandwidth, but at the sacrifice of range. So you can get faster data speeds close to the WiFi Access Point, but speeds will drop off quickly as you move away.
802.11ac is the latest standard, and it adds on top of 802.11n. Specifically, it allows for extra-wide channels (80 or even 160 MHz in the 5 GHz band) and MIMO improvements. In particular, it adds “MU-MIMO” or Multiple-User MIMO to expand the advantages of MIMO to multiple users of a WiFi access point, as well as increasing the number of spatial streams (from 4 to 8) and offering improved modulation techniques on the wider channels (256-QAM).
So the improvements to WiFi since 2003 can be roughly broken down into 3 areas:
5 GHz – The higher the frequency of a radio signal, the more it behaves like light, so the more it is affected by solid objects. 5 GHz. signals disperse more in air, and pass through solids even more poorly than 2.4 GHz. signals (which don’t do very well). So, with some notable exceptions (very focused point-to-point links with very clear line-of-sight), 5 GHz is only useful indoors and for very short distances.
MIMO – MIMO is one of the most exciting improvements to WiFi, because it can dramatically improve indoor performance. Of course, both the access point (e.g. wireless router) and the client device (e.g. laptop) have to have MIMO to make the best use of it, but can really improve both range and throughput indoors. Outdoors, however, where there aren’t walls that signals can bounce off of, the value of MIMO is very limited.
Wide channels – I sometimes explain that radio signals are a lot like plumbing. If you have a water hose with a constant pressure, you can put a narrow nozzle on it and push a little water a long ways, or you can put a wide nozzle on it and push a lot of water a little ways. Wide channels are like a wider nozzle: more bandwidth that doesn’t travel as far.
The key to getting maximum range outdoors is to “squeeze” the stream down as much as possible to force it out toward the horizon. The AyrMesh Hubs do this by going somewhat against the “trend” in WiFi:
2.4 GHz only – for lower dispersion and best penetration of solid objects
SISO – focusing the radio signal (the spectral density) into a single beam for maximum range
Narrow channels – focusing the radio signal into the smallest channel width for maximum range
When we introduced the AyrMesh Hub2n, we noted that it uses 802.11n technology. However, while it does comply with the 802.11n standard, it is, essentially, using the 802.11g features present in 802.11n and almost nothing unique to the 802.11n standard.
That’s not to say that we’re not keeping close tabs on the improvements to WiFi and trying to figure out ways to improve our products. By moving to 802.11n, we picked up WPA2/AES-CCMP encryption, which is actually more efficient on many WiFi radios equipped with hardware encryption, and new modulation methods which may provide marginally better performance. Right now we don’t see any improvements from MIMO, for instance, but we may yet find a way to make use of it. We also have hope that new, more efficient modulation methods could provide us new ways to increase the range and throughput of outdoor WiFi.
We also made use of another WiFi standard in the Hub2n: 802.11s, the new WiFi meshing standard. Time will tell, of course, but we hope that adopting this standard will enable us to introduce new Hub models and other equipment without changing the meshing, effectively “future-proofing” the Hubs.
What this means is that now is the perfect time to build your Wireless Farm Network using WiFi: the technology is extremely well-proven, inexpensive, and reliable. There are lots of contenders to take the place of WiFi for outdoor connectivity, from Super-High-Frequency radio to “White Space” radios (using the unused frequencies in the Television band). None of them are going to offer anything close to the price/performance you can get today out of outdoor WiFi, at least for a very long time. So you can build your network well-assured that there isn’t something waiting in the wings to make your investment obsolete. There will never be a better time to build out your Wireless Farm Network.
Once you have your router set up properly, your devices on-line, and ports forwarded to those devices, there’s one more small problem: being able to reach your devices over the Internet. There are two problems: first, Internet Service Providers (ISPs) usually provide dynamic IP addresses, so your “home address” may change from time to time; second, IP addresses are hard to remember.
The solution is what is called “DDNS” – Dynamic Domain Name Service. Domain Name Service (DNS) is simply the service that translates a domain name (ayrstone.com) into an IP address (162.159.242.105) so you can access it. DDNS is a service that continually and automatically updates the IP address so that you can always reach your home network using a simple, easy-to-remember domain name.
There are two parts to DDNS: first, it involves a service, for which there is usually (but not always) an annual fee, and an “updater” that notifies the service when your IP address changes. Dyndns.com is the leader in this area; they used to offer a single DDNS account for free, but they have since gone to charging $25 a year. For this they offer a very good service with email support if you need it.
Using Dyndns.com is very easy: you typically sign up with a username (e.g. “ayrstone”) and you can select an extension on one of their “house” domains (e.g. ayrstone.dyndns.org – you can actually select up to 30 – or you can use a domain name you actually own). You then need to set up an “updater:”
Many brands of routers have an updater “built in” for dyndns.com, or
You can download a small program from http://dyn.com/support/clients/ that you run on a computer that is ONLY in use on your home network (it won’t help if it updates your domain name to point to Starbucks…) so it can automatically tell when your IP address changes and “tell” dyndns.com.
One of the advantages of using Dyndns.com is that many brands of router are pre-configured for them; all you have to do is fill in your credentials and go. Dyndns.com also has good, downloadable background programs to run on your home or office computer to update the IP address – this is actually how I use the service. My router doesn’t have a built-in Dyndns.com updater, but my office computer is always on here in the lab, so that’s the easiest way to keep Dyndns.com up-to-date on the lab’s IP address..
There are still a number of organizations that offer free DDNS, and here’s a nice article on Lifehacker that talks about them. The free DDNS services are generally not as convenient: many routers don’t even have a “generic” DDNS setup, but, if yours does, that’s what you’ll use if you want the router to update your IP address. If not, most of them have instructions how to set up a script on your home PC to update the address – entirely doable, but not as easy as just downloading an application. Also, most of the free services don’t have any technical support – they’ll typically have “FAQs” on their site, but you’re on your own. I use one of the free services at home, and it works just as well as Dyndns.com, but it was a bit tricky to set up.
Once you get it set up, accessing your home or office network is simple: just use the domain name you selected. For instance, here in the lab I have my desktop computer accessible via VNC accessible on port 7999, two IP cameras (ports 9005 and 9006), and a weather station on port 8000 (as well as my router on port 80). If the lab’s DDNS domain is ayrstone.dyndns.org (it’s not really, of course… even though everything here has a good password, I’m not inviting people to try to hack them), then I can VNC into my computer at ayrstone.dyndns.org:7999, view my IP cameras at http://ayrstone.dyndns.org:9005 and 9006 (I actually have IP Cam Viewer on my phone set up for those ports already), view my weather station at http://ayrstone.dyndns.org:8000, and re-configure my router at http://ayrstone.dyndns.org (port 80 is the default for http connections).
If your goal is to automate information-gathering and enable remote control for machinery on your farm, you need to have access to your farm’s network from wherever you are. DDNS is a way to make that much easier.
There’s a lot of data being collected by monitors in the cabs of tractors, sprayers, and combines, and getting that data someplace it can be used can be critical to your operation. Today we are introducing a way to connect your tractors, sprayers, combines, and trucks to your AyrMesh Network: the AyrMesh Cab Hub.
The AyrMesh Cab Hub is a combination of three things: our trusty, patent-pending AyrMesh Hub2n, a cable that allows the Hub to be powered from a normal 12 volt utility “cigarette lighter” plug, and an external magnetic-mount antenna to get the Hub’s antenna outside and up in the clear.
When it is all set up, the AyrMesh Hub2n rides inside the cab of your vehicle, protected from shock and vibration, but mounted where you can see the “signal lights” if you need to. The cable is plugged into one of the 12v utility outlets, and the antenna is put on a ferrous surface on top of the cab. The Hub connects to the other Hubs in your AyrMesh network, giving you WiFi connectivity in your cab.
The most valuable data on the farm, and some of the hardest data to move to where it can be effectively used, are the data trapped in the monitors on your machines: as-seeded, as-applied, and harvest data. Getting that data out has been laborious (moving Compact Flash cards) or expensive and uncertain (using cellular links), so we’re trying to make it easier with the AyrMesh Cab Hub.
By using the AyrMesh Cab Hub, you’ll have a strong WiFi signal in your Cab whenever you’re in range of one of your other AyrMesh Hubs – up to 2.5 miles away. This means you can use your smartphone, tablet, or laptop from the cab of your tractor, sprayer, combine, or truck. It also makes it easy to transfer data from your WiFi-equipped in-cab monitors, like an AgLeader monitor with their AgFinity adapter, using your AyrMesh network. If your equipment doesn’t currently have WiFi, talk to your dealer about it – vendors are rolling out new products all the time.
If your monitor supports WiFi data transfer, you can use your AyrMesh network to transfer data from your monitor without having to rely on expensive and unreliable cellular links.
Please let us know what you think of this new product from Ayrstone Productivity!
The ASUS RT-N66U – a modern, high-end home wireless router
In the last article in this series, I discussed what a home router is and a little bit about how it works, as well as providing guidance on how to set up the DHCP server.
IP addresses on your LAN are assigned one of two ways: either by the router’s DHCP server, which provides them out of the DHCP address pool (which I suggested should be 192.168.1.50 to 192.168.1.254) or by statically assigning them yourself (which I suggested should be out of the remaining 192.168.1.2 to 192.168.1.49 addresses). Assigning static addresses is very seldom necessary on modern routers, however, because most modern routers have a feature called “DHCP Reservations.” This allows you to specify the MAC address of a device and make sure it is assigned the exact same address via DHCP every time it is connected to the router. Using DHCP reservations, you can ensure that your laptop always gets the same IP address without having to configure a static address for it (which is a pain, since you’d have to re-configure it every time you go to the coffee shop).
Using either static addressing or DHCP reservations, you may want to make sure that “infrastructure” on your home network, like file servers, entertainment systems, or security devices always have the same IP address.
Your router’s NAT usually automatically closes off all the ports on your public IP address, making it impossible to access anything on your LAN from the Internet. In most cases, that’s a good thing – you don’t want the Internet able to reach your private network. But, in some cases, you want to make devices on your network available from the Internet (ALWAYS protected with strong passwords, of course!). The classic example is the IP camera set to watch something important on the farm – it could be the front drive, livestock, or your machine shed – you want to be able to access it from wherever you are so you can check up on it. But you might also want to be able to check and operate machinery like your grain dryer, pumps, irrigation systems, HVAC systems, etc. from a distance.
The IP camera has a webserver that uses port 80 (usually) for its interface, so the trick of port forwarding is to open one port on your public IP address and tell your router to “forward” all packets coming to that port automatically to port 80 (or whatever port you configure) on the camera. So you “knock a brick” out of the router’s firewall by specifying one port on the public side (I like to use ports 7001-7099, because very few services use these ports) and forward that public port to a port on your camera.
The way you do this varies from router to router, but the drill usually entails going to the “port forwarding” interface on your router and specifying the incoming or public port (7001), the device that’s receiving the packets (your camera’s IP address – 192.169.1.something), and the port on the device that will receive the packets (port 80). Then, if your public IP address is 101.102.103.104, you can access your camera on the Internet at http://101.102.103.104:7001 (the IP address, a colon, and the port number). Some routers allow you to specify only certain incoming IP addresses that can access the camera, but that’s usually not a good idea because, for instance, if you want to look at the camera from your smartphone, you won’t know the IP address of the smartphone.
NOTE: some routers (stupidly, in my opinion) require that the port numbers on the public side and the private side be the same – they won’t forward port 7001 on the public side to port 80 on your camera. If you have a router like that, you’ll need to reconfigure your camera (or whatever device you have) to the appropriate port (e.g. 7001) port before you can do the port forward. You shouldn’t forward ports under 1024 unless you know exactly what you’re doing, because you might be disabling something your router needs to function properly. Forwarding extremely popular ports like 80, 20, 21, 22, 23, 25, etc. can also attract password crackers and other undesirable elements to your network.
Let me emphasize at this point the importance of a strong password on anything that’s exposed to the Internet – if you can access it, so can anyone else, so make sure it’s locked down.
On my own home network, I have several ports forwarded to different IP cameras around my property, as well as ports forwarded to my desktop Windows machine (using VNC so I can access it easily when I’m away) and my Linux development machine (using SSH). I can actually access any of those devices using my smartphone, so I can stay on top of things anywhere I have an Internet connection.
The venerable Linksys WRT54G – Courtesy of Linksys
The world of networking is complex, including that little bundle of technology sitting on your shelf – your router. It is actually a pretty amazing little device that can probably do more than you realize. In truth, the typical “consumer” router is a combination of three devices:
A router – a router is a device with two or more ports that is used to connect two or more networks together. Typically, the consumer router has a “WAN” port that connects to the “Wide Area Network” of your Internet Service provider and “LAN” ports for your Local Area Network.
An Ethernet switch – you may have noticed that your router doesn’t have two ports; most actually have five: one WAN port and four LAN ports. Inside the box is an Ethernet switch that turns the LAN port of the router into 4 LAN ports to which you can connect wired computers, servers, and even additional Ethernet switches if needed. Actually, it’s 5 LAN ports, because the fifth one is connected to…
A WiFi Access Point – this is simply a wireless radio connected to an internal LAN port that provides a WiFi signal for computers, tablets, smartphones, IP cameras, entertainment systems, and all kinds of other things. This WiFi radio is usually optimized for short-range, indoor use, providing maximum throughput for a short distance.
One of the odd and important facts about a router is that it has two Internet Protocol (IP) addresses: one on the network to which its WAN port is connected (which should be a public IP address, visible from the Internet – e.g. 108.162.198.52, ayrstone.com’s address), and one on the LAN port, the network it creates for you (a private address, not usable from the Internet, e.g. 192.168.1.1). Its job is to take data packets from each network and move them to their destination network. So, if your computer is at 192.168.1.50 on the LAN, and it receives a packet on its WAN port destined for 192.168.1.50, it passes it to the LAN port where it finds its way to your computer. Similarly, if your computer creates a connection to 108.162.198.52, the router receives packets from your computer on its LAN port and routes them to the WAN port. When you print to your networked printer (at, say, 192.168.1.100), it receives packets from your computer and then just turns them around and sends them back down the LAN port, since they are not destined for the Internet.
The ability of the router to accept traffic on a single public IP address and enable several different computers at private IP addresses to have separate “conversations” with the Internet is called “Network Address Translation” or NAT. The way it does this is by using “ports” – simply numbers associated with every IP address.
Each IP address has 65,535 possible ports. Some ports have pre-assigned purposes, some are available for use by applications, and some are ephemeral – here’s a good explanation of which are which. NAT uses those ephemeral ports to keep the conversations between your network and the Internet straight; for instance, your computer’s conversation with this website might be using your public IP address’s port 55135, while another computer on your network might be having a conversation with another website on port 61234. To the two websites, it looks like the traffic is coming from a single computer, specifically your router. Your router then routes the responses from the websites to the correct computer based on the port on which the data comes in.
The private IP addresses on your network are usually assigned by your router using Dynamic Host Configuration Protocol or DHCP. When a computer connects to your network, it will ask the router for an address via DHCP, and the router will provide it one (assuming it has one to provide). The address is referred to as a “lease,” because it will expire at some point after the device leaves the network, so it can be used by another device. However, note that you can simply assign a static IP address to a device in your network, as long as (1) it is an IP address inside your network (usually meaning it has the same three first numbers as everything else on your local network, e.g. 192.168.1.x) and (2) it does not interfere with the DHCP settings on your router (if your DHCP server begins at 192.168.1.50 and your router is at 192.168.1.1, use static addresses between 192.168.1.2 and 192.168.1.49, and KEEP TRACK OF THEM WHEN YOU ASSIGN THEM!!!)
The first tip for getting the most out of your router is this: set up your router’s DHCP server carefully. I suggest setting your router’s IP address as 192.168.1.1 and setting your router’s DHCP range from 192.168.1.50 to 192.168.1.254 (204 addresses). The reason for this particular range is that, first, it allows for a large number of devices to automatically use your router, getting private IP addresses via DHCP (204) but still leaves you 48 addresses you can use for devices you want to statically assign. This gives you the flexibility to maintain, expand, and control your home network.
Alternately, most modern routers support DHCP Reservations, which allow you to ensure that the router ALWAYS provides the same IP address to a device on the network. That way you get the advantage of a static IP address (knowing where a device is at all times) with the advantage of DHCP (ease of configuring devices and the IP addresses being managed by the router).
The article about the myths is excellent and stands on its own – I strongly suggest you read it. I thought I’d add a little about the topic here, by focusing on three aspects: Wireless, Farm, and Networking.
Wireless– I have seen “wired” farm networks – a number of livestock producers have trenched and buried fiber lines to their livestock buildings (Ethernet can only go 100 yards) for monitoring and control. However, it’s much cheaper now to go wireless, and it gives you much more flexibility. To build a good wireless network on your farm, you have to learn about “line of sight” (or, more correctly, Fresnel Zones) and position equipment so it has both power available and good radio signal from the rest of the network. It used to be that having a private wireless network across your farm was either technically impossible or cost-prohibitive, but we are proving that wrong every day.
Farm– A farm is pretty much defined as being in a rural area, and we’ve all seen that what works in town doesn’t necessarily work on the Farm, and vice-versa. The AyrMesh network is designed for farm use – relatively few people and machines spread out over a relatively large area. There are lots of good solutions for networking in town, where there are a lot of people in a small area, but they will never work as well as a solution designed specifically for the farm.
Network – The Internet Protocol (IP) network is the single, unified data communications medium for this century. I have seen farms that had a wireless link for their weather station, another wireless link for their GPS corrections, a home WiFI system and cellular coverage. Getting rid of the “point-to-point” solutions and putting everything on the network enables you to collect and transmit the data you need more easily, deliver what you need over the Internet, and gives you the option of adding new technologies to your operation quickly and easily.
Some people think this is revolutionary, but I would argue nothing could be further from the truth: this is the result of a clear evolution over time. In the 1970s academicians started tying computers together and transferring data over the first networks. In the 1980s networks came out of academia and started being used for business and even personal purposes; in the meantime, ham radio operators and researchers were starting to send digital data over radio waves. In the 1990s companies started to network their offices to share files and printers, as well as sending emails. Building-to-building microwave links became relatively common, and Industrial Automation moved to IP networks. In the 2000s the consumer internet became a reality, as did WiFi for wireless data, and we all got “on the net.” Now, in the 2010s, we have the Internet of Things and the low cost of high-power wireless networking, making this the decade of Wireless Farm Networking. The ability to monitor farm data and even control farm operations using a local network connected to the global internet will change agriculture forever.
One of the hottest topics in “Ag Tech” at the moment is Unmanned Aerial Vehicles (UAVs, also known as drones) and the role they can play for the farmer. Drones are hot right now, in Ag and other industries, because technology has made them much more adaptable and much lower in cost.
The possible benefits are tantalizing: an automatic, self-flying platform that can loft things into the air, take them where you need them, and take actions you prescribe. Just a few of the things drones can conceivably do for you:
Take visible-light, near-infrared, and infrared photographs of all your fields at much higher resolution and in less time than satellite
Get instant thermocline and other weather data (pop up 1000′ and check the temperature, wind speed, barometric pressure, etc.)
When I was at the World Ag Expo a few weeks ago, there were several companies showing off drones and talking about drone-based ag services. Please make note of the distinction between drones and drone-based services, because, at the moment, it’s important. Or maybe not. I’ll explain as well as possible.
The Federal Aviation Administration has had a long-standing rule against the use of UAVs for “commercial purposes” – anything involving making money. Now, you can buy model airplanes with very sophisticated self-flying and video systems for fun or research, but not for any money-making purpose. However, a number of people couldn’t help themselves in making use of these amazing machines to enhance their businesses, and they have been getting “cease and desist” letters from the FAA. One guy named Raphael Pirker actually was fined by the FAA, giving him the opportunity to challenge the fine. He appealed to the National Transit Safety Board, and the administrative judge there ruled that the FAA did not have in place any actual regulations for the use of UAVs in non-navigable airspace, and therefore could not enforce the fine against Pirker. There’s a good article about this in Scientific American.
So, apparently, one currently can use UAVs for commercial pursuits, with some (not entirely clear) limitations. I’ll bet if you take your drone anywhere near a commercial airfield, for instance, you’ll get to meet some members of law enforcement and spend time with them. I’ll bet if you take your drone near any government installation, you will get to spend a serious amount of time with members of law enforcement and/or the military. In either case I’ll wager you’ll get to contribute a good amount of money to the government. And there are undoubtedly some private citizens who will happily shotgun your UAV out of the sky on sight.
I’ll also wager that the FAA (or some other part of the government) will create some rules about UAVs to protect people from stuff falling out of the sky on top of people and property, and having our neighbors peeking in 2nd (or 102nd)-story windows. But, for the moment, it looks like the skies are open, particularly out in the rural areas, and I expect farmers to be the first to benefit from UAVs. Some people like Chad Colby are already talking publicly about the opportunities.
Honestly, I think the current “state of the art” is mostly a plaything: the drones that are currently available are mostly manually radio-controlled and focused on live picture-taking. UAVs I have seen that might be put to use on the farm must be charged, taken to the field, flown around the field, and then the pictures (or other data) downloaded off the UAV (by bluetooth, WiFi, or transfer from some kind of flash card). This is a significant commitment of time, which limits how often you can really use the drone. A crop scout may be able to save a lot of the time he would normally spend by using a UAV to survey fields, but there’s benefit to the grower having a drone or drones that would continually survey fields.
The reason I am particularly interested in Ag Drones is because I believe they can become an important part of the day-to-day information-gathering apparatus. To be truly useful, however, I believe they must be:
Autonomous: flying over your fields automatically without intervention. Ideally, they would have a “home” out in the field where they would stay, and they would do their flying at specific times with no human interaction needed.
Smart: able to recognize problems and take appropriate action – recognize if there is something different in the fields, avoid danger, and report back
Connected: automatically uploading data collected and sending alerts to you as needed. For instance, a drone flying over your fields taking infrared photos might use the wireless farm network to automatically upload the pictures to a service that automatically scans them for anomalies indicating crop stress.
Self-maintaining: self-charging and self-monitoring, needing little maintenance and letting you know when it needs “help”
My own vision is that an Ag drone should be programmed with pre-configured flight paths and connected via WiFi with a wireless farm network for constant (or at least mostly constant) communication. It should be able to download changes to its schedule and pre-configured flight paths off the network, and It should also be able to land on a platform that will automatically charge the drone’s batteries for the next flight. Set up this way:
The grower, scout, or agronomist doesn’t have to go out and mess around with the drone – it can just do its thing as often as it needs to (pending charging of the batteries)
The data can be automatically collected on the grower’s PC or on a central server (on the farm or on the Internet) – it can even be automatically processed and problems (plant stress, aberrant weather conditions, etc.) can be automatically reported to the grower
The drone works for the farmer, not the other way around.
All the pieces exist today to create drones that can meet these criteria, but I’m not aware of any pre-built planes or copters that are ready-to-use. However, there are open-source software projects that have built auto-pilot systems for drones and other robots (e.g. the ArduCopter), and there is discussion of induction charging of quadcopters in the “DIY” forums. And heavier-lift copters (capable of picking up fairly heavy items and transporting them) are also in the works. Imagine being able to get out your cellphone and “tell” your copter to bring you the parts you forgot back at the workshop, then hearing it whirring its way toward you a few minutes later. And then, when it delivers them, it DOESN’T TELL YOU YOU’RE AN IDIOT for forgetting the parts. For me, that would be nearly priceless.
In short, I think there are a lot of possible benefits from using UAVs on the farm, and I’m eager to see them start to deliver those benefits. However, I think a lot of the benefits are greatly enhanced by having the UAVs connected to a wireless farm network – I believe the two technologies will work hand-in-hand, each enhancing the value of the other.
“Farm security” used to be synonymous with “watchdog” or maybe “shotgun,” but farms have gotten a whole lot bigger than even a big dog or a light sleeper can protect. And farm equipment and inventory haven’t gotten any cheaper to replace.
For that reason, I have long been a proponent of using cameras for both farm operations (e.g. being able to see what’s going on in a livestock barn while you’re in bed) and farm security.
For operational use, IP cameras are easy (as long as you have a network). Just hook up a camera, find its IP address on your router, and use a phone, tablet, or computer to take a look any time you want. If you want to see it when you’re off your network, port-forward to the camera from your router.
For security use, however, you want to watch it all the time. Staying up all night staring at the computer screen is not really practical, but there are some good alternatives. My favorite one is a program called “Sighthound.” It runs on your Windows PC or Mac, it’s reasonably priced ($250 as I’m writing this), As long as you have a machine that’s on 24×7 (like my desktop machine), it’s a great solution.
Sitehound has a number of attractive attributes:
Runs on either Windows or Mac
Works with a very broad variety of cameras
Very easy to set up and use
Object-based motion tracking instead of just motion detection
That last point deserves some explanation – simple motion detection (like the built-in detection on inexpensive IP cameras) just looks for pixels to change from frame to frame, and they “alarm” if a certain percentage of the pixels in the picture change. The problem is that a lot of the pixels change any time the lighting changes (sunup, sundown, sun going behind the clouds, etc.) so you get a lot of false alarms. Better systems allow you to specify “zones” for motion detection, so you are only considering the part of the picture you are actually concerned with. This reduces, but does not eliminate these “false positives.” But Sighthound uses a much more accurate (albeit processor-intensive) method to identify and track moving objects in the picture. In the picture here, Sighthound is tracking the dog walking through the living room – you can see the dog in the yellow box near the bottom of the screen. This video was recorded automatically from the moment the dog moved until she went out of sight. However, even on a day when clouds are crossing the sun and the light coming through the window is almost constantly changing, it doesn’t record unless the dog (or something else) moves.
Sighthound has a number of really nice features, including a built-in webserver which allows you to view it from another computer, tablet, or smartphone. You can port-forward to your computer and access Sighthound from anywhere on the Internet.
Sighthound is, of course, no better than the cameras and computer you are using – if they are poorly set up, unreliable, or have poor connections to the network, Sighthound will fail to work properly. But, if your computer, network, and cameras are reliable, Sighthound can provide outstanding monitoring and alerting for your farm or ranch.
